A full-featured EM simulation solver, XFdtd outpaces other methods in efficiency as the number of unknowns increases. XF includes full-wave, static, bio-thermal, optimization, and circuit solvers to tackle a wide variety of applications, including antenna design and placement, biomedical and SAR, EMI/EMC, microwave devices, radar and scattering, automotive radar, and more. It also works with Remcom's ray-tracing products to provide thorough simulation capability at the low-, middle-, and high-end of the electromagnetic spectrum.
XF's unique collection of features simplifies the analysis of even the most complex and massive problems.
High Performance Computing Options Improve EM simulation performance using the most modern high-performance computing technologies available.
XStream® GPU Acceleration Built-in EM Simulation Acceleration via GPUs. Combine with MPI technology for GPU clusters.
Array Analysis The Array Analysis tool in XF optimizes the phases of the feeds for each element over a set of desired beam angles.
Waveguide Excitations XFdtd offers modal and nodal waveguide interfaces.
Circuit Co-Simulation A time-domain circuit solver allows SPICE circuit structures to be updated during the FDTD simulation.
Dielectric Breakdown Prediction Predict locations at risk of suffering dielectric breakdown with XF's collection of ESD testing simulation tools.
Circuit Element Optimizer Determines optimal values for lumped circuit elements connected directly into the EM simulation mesh.
Wrapping Flexible PCB and 2D Sheets Wrap a full, multi-layer flexible PCB design onto a form in one easy step, or wrap a sheet onto an arbitrarily shaped surface.
Optenni Lab Integration Easily generate a matching network topology and initial component values for your device.
PrOGrid Project Optimized Gridding® Simplifies grid creation by considering multiple aspects of a project to optimize the grid for both accuracy and runtime.
XACT Accurate Cell Technology® Resolves the most intricate designs with fewer computational resources for faster, more accurate simulations.
MATLAB Export Functionality All data available through XF’s Result Browser can be exported to MATLAB and CSV formats.
Biological Thermal Sensor For biomedical analyses, allows metals and other non-biological objects to be included in the temperature rise computation.
VariPose® Repositions human biological mesh for bioelectromagnetic applications including MRI, communication devices such as cell phones and more.

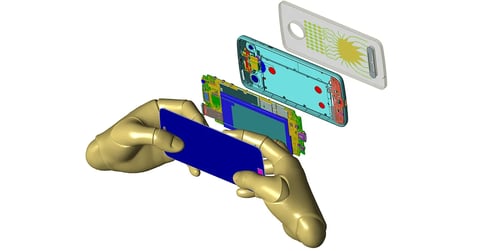

Poseable Hands For mobile device design, XF can mimic numerous mobile device grips.
Simplified Workflow XF streamlines your workflow by eliminating time-consuming, redundant tasks.
Results and Output Complete result history.
Dynamic Interactive Graphs Working with results is simple in XF.
Powerful Flexible Modeling Spend less time modeling and more time getting results.
Custom Scripted Features XF allows you to create your own custom features with a powerful scripting API.
Parameters Everywhere XF gives you more simulation control with parameterization.
Fast Intelligent Meshing XF makes it easier to generate more accurate and efficient meshes with less work.
XF includes a specialized FDTD solver which outpaces other methods in efficiency as the number of unknowns increases. Learn more about the benefits of the FDTD method.
Learning and Documentation
An antenna based on a transverse slotted rectangular waveguide design is realized in a substrate integrated waveguide structure and simulated in XFdtd EM Simulation Software.
A 60 GHz antenna array design is simulated in XFdtd to demonstrate suitability for use on wireless Virtual Reality headsets. The antenna array is comprised of elements each containing two patches and a parasitic element. The resulting array produces a fan beam which may be steered by varying the phasing between the elements resulting in broad coverage. The final design is simulated mounted on a section of a virtual reality visor.
This example uses XFdtd to simulate the performance of a low cost, chipless RFID system. The RFID tag is comprised of two ultrawide band monopole disk antennas mounted in a cross-polarized configuration combined with a microstrip line adjacent to six varying size spiral resonators which each represent a single bit in the RFID tag code. The system is validated using two cross-polarized log periodic dipole arrays as the send and receive devices.
This example is a more complete device for 28 GHz beamforming for 5G networks and includes an 8x8 patch antenna array, 1 to 8 power dividers and a Rotman lens initial stage. The design of the Rotman lens is performed using Remcom’s Rotman Lens Designer® (RLD) software, which produces a CAD version of the device for use in XFdtd®. In XFdtd, a set of eight 1 to 8 Wilkinson stripline power divider networks is designed to act as the connection between the Rotman lens and the antenna array. The performance of each stage is simulated and evaluated.
A proposed smartphone design that includes a 4G antenna operating at 860 MHz and a 5G array at 28 GHz is analyzed in XFdtd to determine operating characteristics and any mutual coupling. A brief study of configurations is performed to find the best positioning for each antenna.
XFdtd simulates ESD testing, enabling engineers to identify potential locations and components at risk of dielectric breakdown in their device designs prior to hardware testing. This presentation summarizes XFdtd's collection of features to mitigate ESD risk.
Download examples that demonstrate how EM simulation software solves challenges related to 5G and MIMO. Examples include MIMO and array design, 5G urban small cells, mmWave and beamforming
Wireless power transfer is an emerging technology used in many applications, including consumer electronics, electric vehicles, and biomedical implants, and will undoubtedly see continued growth over the next decade and beyond. This presentation demonstrates how XFdtd can be used to simulate and analyze wireless charging systems.
Using a new electromagnetic/circuit co-simulation capability based on the FDTD method, the process of importing broadband circuit models into an EM simulation project, optimizing the overall design, and calculating important quantities such as S-parameters, radiation patterns, and system efficiency is demonstrated in this MicroApps presentation from IMS 2018.
This webinar introduces XF’s collection of ESD simulation features and demonstrates how to minimize the chance of undetected damage prior to hardware testing.
The latest release of XFdtd introduces exciting new features for 5G antenna array design, including workflow enhancements for modeling complex devices at millimeter wave frequencies. This webinar demonstrates performance metrics for 5G beam steering applications via the new CDF of EIRP plot as well as XF’s enhanced matching network design integration with Optenni Lab™ matching circuit optimization software.
Fixed Wireless Access is a key application expected to benefit from 5G networks. This webinar will demonstrate how modeling and simulation can be used to assist system designers, first in the design of a complex antenna array for a base station, and then to assess its potential performance in the field.
The design of a matched antenna is a fairly involved process. This webinar shows how XFdtd simplifies this process by providing tools to parameterize the unmatched antenna, determine S11, synthesize a matching network topology with Optenni Lab, and determine the final component values using the Circuit Element Optimizer.
Learn how to use XF's features for ESD testing as we walk through the process of analyzing a multi-layer PCB and identifying potential locations of dielectric breakdown.
In this video Remcom introduces the CDF of EIRP metric for antenna phased array analysis in XFdtd. The example demonstrates a special diversity application using a smartphone.
In this short video from IMS 2018, Remcom's product marketing manager, Jeff Barney, describes the process of simulating the antenna element, modeling the channel propagation, and calculating the throughput modulation.
This video gives a demonstration of Full-Wave Antenna Matching Circuit Optimization using XFdtd's Circuit Element Optimizer (CEO). The antenna matching circuit design flow is discussed, including CEO's analysis of a given PCB layout. Predicted S-parameters and optimal component value results for two different frequency bands are also shown.
